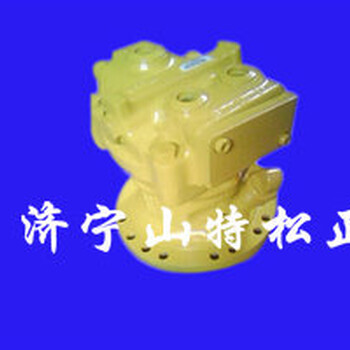

小松挖掘機PC300-7回轉馬達706-7K-01070原廠原裝

706-7K-01070 馬達總成...........................................MOTOR ASS’Y

706-7K-03011 . 馬達總成............................... MOTOR SUB ASS’Y

706-7K-41111 . . 殼體（馬達）............................ CASE, MOTOR

706-7K-71110 . . 缸體.......................................................HOUSING

706-7K-40010 . . 軸承........................................................BEARING

706-75-42830 . . 定位銷............................................. PIN, DOWEL

706-77-72280 . . 堵塞.............................................................. PLUG

07002-12034 . . O 形圈........................................................O-RING

709-74-92810 . . 閥.................................................................VALVE

709-75-92220 . . 彈簧..........................................................SPRING

709-74-92821 . . 堵塞.............................................................. PLUG

700-93-11320 . . O 形圈........................................................O-RING

700-93-11330 . . 支承環........................................RING, BACK-UP

706-77-72130 . . 閥.................................................................VALVE

706-77-72140 . . 彈簧..........................................................SPRING

706-77-72150 . . 堵塞.............................................................. PLUG

07002-14234 . . O 形圈........................................................O-RING

706-7K-40020 . . O 形圈........................................................O-RING

01252-61450 . . 螺栓...............................................................BOLT

706-7K-01070 馬達總成...........................................MOTOR ASS’Y

706-7K-03011 馬達總成............................... MOTOR SUB ASS’Y

706-7K-41610 . . 軸................................................................SHAFT

706-77-43880 . . 軸承........................................................BEARING

706-7K-41810 . . 調整墊片................................................ SPACER

706-77-42051 . . 彈簧..........................................................SPRING

706-77-42041 . . 座...................................................................SEAT

706-77-42890 . . 軸承........................................................BEARING

706-77-05010 . . 調整墊片組件................................ SPACER KIT

04064-06525 . . 卡簧...................................................RING, SNAP

706-77-43950 . . 油封.......................................................SEAL, OIL

04065-07525 . . 隔圈...............................................................RING

706-7K-41210 . . 氣缸體..................................BLOCK, CYLINDER

706-7K-41710 . . 閥板............................................... PLATE, VALVE

708-18-13230 . . 銷......................................................................PIN

706-7K-41120 . . 中心軸...................................... SHAFT, CENTER

706-77-42130 . . 中央隔圈.....................................RING, CENTER

706-7K-41140 . . 彈簧..........................................................SPRING

706-7K-05010 . . 彈簧座組件.................................RETAINER KIT

. . . 彈簧座...............................................RETAINER

. . . 螺釘........................................................ SCREW

706-7K-41160 . . 活塞總成............................. PISTON SUB ASS’Y

706-7K-91340 . . 板.................................................................PLATE

706-7K-91350 . . 從動磨擦片................................................. DISC

706-7K-91111 . . 活塞（制動）..........................PISTON, BRAKE

07000-15230 . . O 形圈........................................................O-RING

708-8H-15220 . . O 形圈........................................................O-RING

706-7K-91360 . . 彈簧..........................................................SPRING
