Specifications
Temperature Range: -40 to 1000°C (-40 to 1832oF)
Field-of-View:
    OS301A-USB: 30:1
    OS801A-USB: 5 at 100 mm diameter
Output: 4 to 20 mA (linear with temperature)
Configuration: Via PC port conforming to USB 2.0
Accuracy: ±1% of reading or ±1°C whichever is greater
Repeatability: ±0.5% of reading or ±0.5°C whichever is greater
Emissivity: 0.1 to 1.0
Response Time t90: 200 mS (90% response)
Spectral Range: 8 to 14 μm
Supply Voltage: 24 Vdc (28 Vdc maximum)
Sensor Voltage: 6 Vdc minimum
Maximum Loop Impedance: 900 Ω @ 24 Vdc
Maximum Span: 1000°C (1832oF)
Minimum Span: 100°C (212oF)
Mechanical
Construction: Stainless steel
Dimensions: 61 L x 27.6 mm D (2.4 x 1.1")
Thread Mounting: M20 x 1 mm (0.04") pitch
Weight with Output Cable: 155 g (5.47 oz)
Output Cable Length: 1 m (3.3')
USB Cable Length: 1.8 m (5.9')
Environmental
Environmental Rating: IP65
Ambient Temperature Range: 0 to 70°C (32 to 158oF)
Relative Humidity: 95% maximum non-condensing

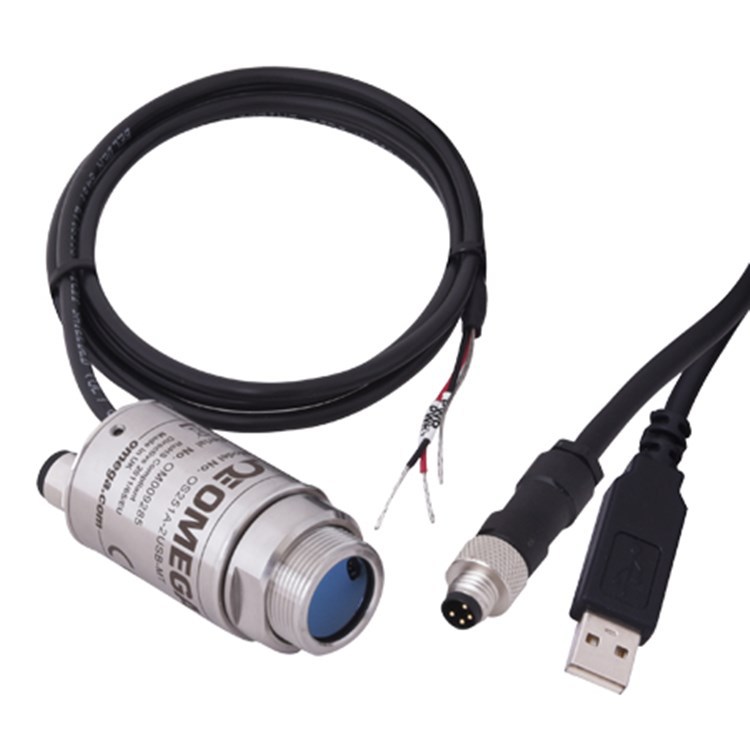

美國OMEGA奧米佳紅外溫度傳感器變送器OS301A-USB,OS801A-USB
